Performance and Characteristics:
1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverter constant speed auto material feeding.
3. Imported double servo-motor material dragging control system
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine Interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator
7. Temperature adjustment range: 0～300℃.
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device:working rhythm can pre-set as continuous, interval or stop,punching time can be pre-set.
11. Material Skip Feeding: one to six times available.
12. Batch Conveying Function available, the quantity of batch can be preset.

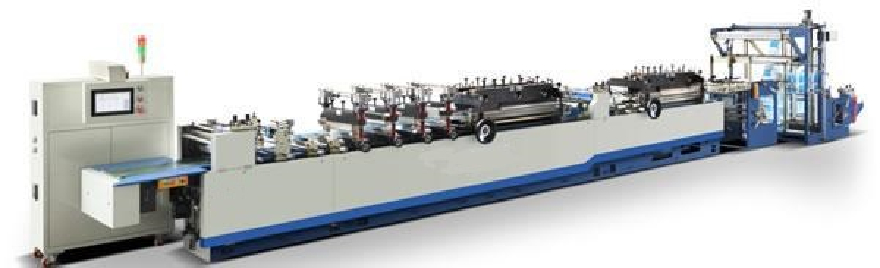

Application:
With such characteristics as reasonable structure, easy operation and high automation, this machine is suitable for producing pouch from various plastic-plastic,paper-plastic,paper-paper laminated materials and it is a kind of ideal Bag-making equipment for producing Middle sealing and three-side sealing bags.
