Function indication:

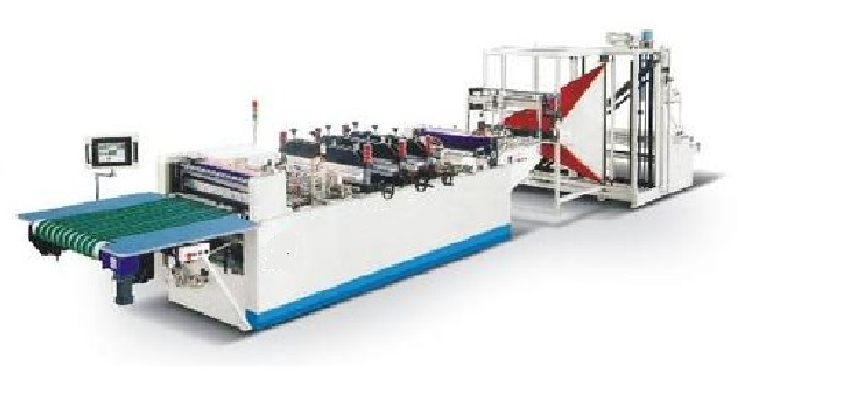

ZKZD-700DZ is an exclusive air inflation flim bag making machine designed for matching the exclusive ZKZD-1300 air inflation bag making machine. It adopts the advanced PLC control system and quality and high efficiency main machine digital AC servo system and is equipped with advance double cutting blade. The machine is a new generation exclusive bag-making machine with FTF man/machine interface to provide instant parameter display.
Technical Data:
Film:All kind of laminated hot seal film
Roll size：Max. Width：1450mm；Max. diameter：φ600mm
Bagging speed：150parts/min stand (Real speed look upon material, bag body as a decided)
Bagging width：50-500mm(multiple conveying device can be adopted when over long)
Bagging length：700mm
Bagging data：TFT displaying， punching time can be preset, continuous or interval punching is available.
Message alert：lost of photoelectricity, lost of temperature, midway tension and switch off the machine..
Wraping：LPC rectify a deviation, tension is automatically controlled.
Feeding：1kw×2=2kw
Main engine：3kw×1=3kw
Unwind：0.55kw×3=1.65kw
Lateral seal：2.5kw×8=20kw
Control system etc.：1kw
Total：26.55kw
Cooling water：15L/min
Gas pressure：0.6Mpa
Weight：about3500kg
Dimension(L×W×H)：10500×1960×2080mm
