- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: ZKZD-1300
Function indication:

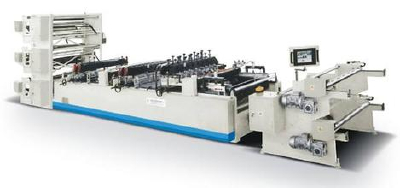

ZKZD-1300 air inflation film bag-making machine is designed for the modern air inflation packing of 21 st century. This is a new generation exclusive bag-making machine, equipped with advanced PLC control system and quality/ high-efficiency main machine digital AC servo system to provide instant parameter display through FTF man/machine interface.
Feeding：1.5kw×2=3kw
Main engine：4kw×1=4kw
Unwind：0.55kw×3=1.65kw
Vertical seal：3kw×8=24kw
Lateral seal：3kw×6=18kw
Control system etc.：2kw
Total：52.65kw
Cooling water：15L/min
Gas pressure：0.6Mpa
Weight：about6000kg
Dimension(L×W×H)：9910×2000×2380mm
Technical Data:
Film:All kind of laminated hot seal film
Roll size：
Max. Width：1250mm；
Max. diameter：φ600mm(up, middle, low three layer)
Bagging speed：100parts/min (Machanical design speed)
Note：The actual operation speed will reduce for the reason of the bag tpe and material
Bagging Max. Width：1200mm
Bagging length：50-300mm
Bagging data：TFT displaying, presetting is available bagging amount, bagging speed, punch times batch.
Message alert：lost of photoelectricity, lost of temperature, midway tension.
Wraping：put the warp beam horizontally, up, middle and low feed at the same time.
Rewind：put the rewind beam horizontally, up and low feed at the same time, diameter of the rewind: φ600mm
