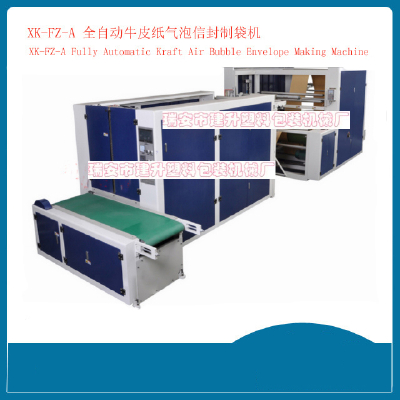

XK-FZ-A Fully Automatic Kraft Air Bubble Envelope Making Machine

XK-FZ-A Fully Automatic Kraft Air Bubble Envelope Making Machine

  • Min.Order Quantity: 1 Set
  • Supply Ability: 40 Sets per Month
  • Port: ruian zhejiang china
  • Payment Terms: L/C,D/A,D/P,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2001-10-01
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  ruian zhejiang china
  • Brand Name:  jiansheng
  • Model Number:  XK-FZ-A

Machine Usage:

The Machine is professional to make laminated kraft paper bags, kraft paper compounded with bubble bags, aluminum compounded with bubble bags and so on.

Description:

The Machine sets Light, electric and gas system in an international professional unit. It is in a high production speed, nice appearance, good shockproof effect with stable performance, and which compliance with the safety standard of Western Countries. Even more importantly, the machine fills in the defects of inaccurate sealing and cutting, away from sensor when printing, incorrect position of bag mouth, broken bubble, less solid sealing and so on. It has been well received and been going to well introduced by customers. In addition, we owns several patents, we must and will investigate his legal responsibility according to the law if have similarity.



Performance & Characteristics:



1. This machine adopt Taiwan touch screen computer display, PCL computer program which can be edited.
2. Auto meter counting & stop, could set number freely.
3. Computer fixed-length, printing color tracking.
4. Paper feeding with auto side-correction control.
5. The machine is able to finish printing, compounding materials, folding and coating into one line.

6. The machine adopts with heating compounded.


  • Place of Origin:  ruian zhejiang china
  • Brand Name:  jiansheng
  • Model Number:  XK-FZ-A

Technical Parameters:


Machine Model

XK-FZ-A

Max. Material Width

1150mm

Max. Air Bubble Roll Material Width

1100mm

Max. Material Diameter

Φ1000mm

Machine Speed

20-80 pcs/min

Bag Length

100-500mm

Bag Width

150-550mm

Paper Thickness

> 90g

Voltage

380V Three phase four-line

Power

38kw

Machine Weight

2600KG

Machine Dimension

8000*2200*2100MM
