Product Details
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng

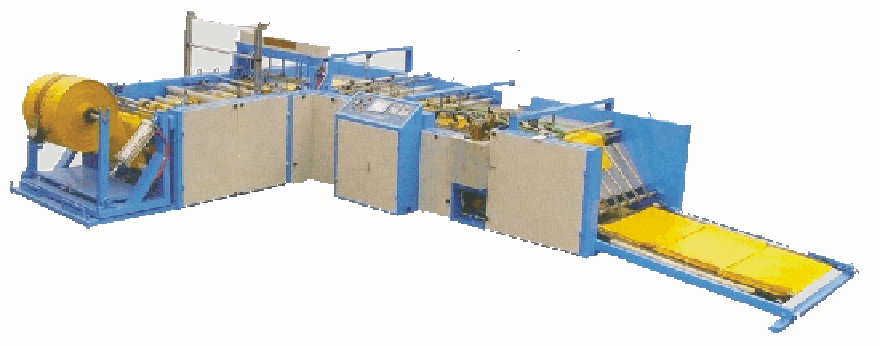

- Model Number: SJ-QF800
Characteristics/Main Technical Parameters:
1.It automatically accomplishes the heat cutting and bottom bemming at fixed length for color-printed or lpain woven cloth roll,which saves much labor forces. |
2.It adopts touch screed for presetting,PLC for controlling and servo motor for driving in order to control the length of sack precisely. |
3.The mouth of bag is easy to open and won''t be conglutinate after heat cutting. |
4.With automatic counting the finished sacks can be dalivered in batches. |
5.With pneumatic roll-installing,it''s so convenient to operate. |
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: SJ-QF800
Max.diameter of cloth teller(mm) | 1200mm | Max cutting width(mm) | 800mm |
Cutting length(mm) | 600-1200mm | Cuttin predsion(mm) | 0.4mm |
Folding width(mm) | 20-30mm | Production capacity(pcs/min) | 20-30pcs/min |
Gross power(kw) | 6kw | Weight(kg) | approx.1800kg |
Overalldimension(L*W*H) | 5100*4500*1200mm |
