Product Details
- Size: 5800 x 1500 x 1100
- Place of Origin: china
- Brand Name: jiansheng
- Model Number: SJ-C90-120
- Weight: 2000.000 kg

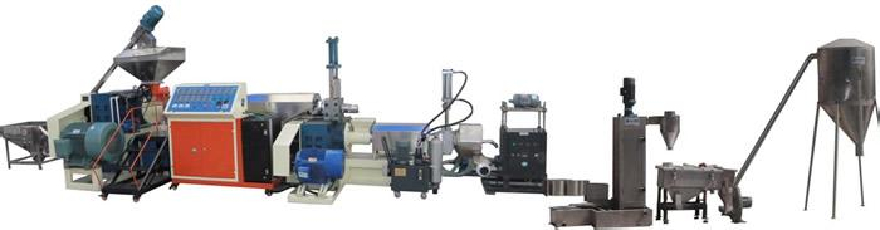

SJ-C90, 100, 110, 120 recycled plastic pelletizing machine, suitable for high and low pressure, polypropylene and other plastic recycling pelletizing, the machine is equipped with automatic thermostat control, electric screen changing device, if using crushed pelletizing, can be equipped with another forced pushing device. The pelletizer is equipped with automatic thermostat control and electric screen changer. The machine has high output, low noise, stable performance, convenient operation, etc. It is a kind of ideal waste plastic film regeneration pelletizing machine.
- Size: 5800 x 1500 x 1100
- Place of Origin: china
- Brand Name: jiansheng
- Model Number: SJ-C90-120
- Weight: 2000.000 kg
Main technical parameters
| Model | SJ-90 | SJ-100 | SJ-110 | SJ-120 |
| Screw diameter | 85mm | 95mm | 105mm | 110mm |
| Screw length to diameter ratio | 20:1-22:1(L/D) | 20:1-22:1(L/D) | 20:1-22:1(L/D) | 20:1-22:1(L/D) |
| Screw speed | 10-110rpm | 10-110rpm | 10-110rpm | 10-110rpm |
| Main motor power | 22kw | 30kw | 30kw | 37kw |
| Output | 60kg/h | 90kg/h | 110kg/h | 130kg/h |
| Weight of the whole machine | 2t | 2.1t | 2.2t | 2.5t |
| External dimension | 5800 x 1500 x 1100 | 5900 x 1300 x 1200 | 6000 x 1350 x 1300 | 6200 x 1400 x 1350 |
