Product Details
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: RDL-700

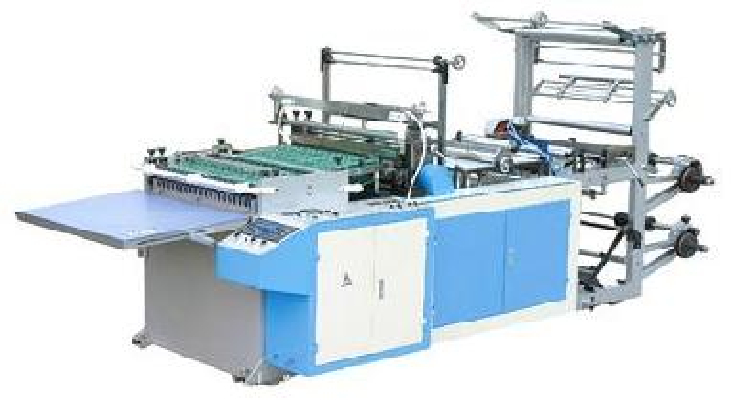

| USEThis machine is suitable for thermal cutting and bag making fo such printing and non-printing plastic films BOPP、OPP and PE etc. and it is a kind of ideal equipment for making sock bag towel bag. Bread bag and ornaments bag, ect. |
| Performance and Characteristics |
| 1、The whole machine adopts microcomputer control and material-pulling by stepping motor.(Servomotor control system can be selected and equipped).2、Arbitrary fixed-length,accurate and stable step photoelectric tracking,stopping automatically when the label is lost.3、Automatic and synchronous two-side tape gluing,automatic punching.4、Automatic counting and settable counting alarm. 5、Heat-sealing decorative border,automatic constant terperature,firm and smooth sealing. |
| ●Main Technical Variables |
| ModelRDL-700RDL-800RDL-900RDL-1000Max.Width of Base Material700mm800mm900mm1000mmMax.Cutting Length50～700mm50～700mm50～700mm50～700mmMax.Bag-makong width680mm780mm880mm980mmProduction Capacity40～140个/min40～140个/min40～140个/min40～140个/minTotal Power3.6kw3.8kw4.5kw4.7kwOverall Dimensions3500×1100×1800mm3500×1200×1800mm3500×1300×1800mm3500×1400×1800mm |
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: RDL-700
