Product Details
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: GFQ-600/700/900

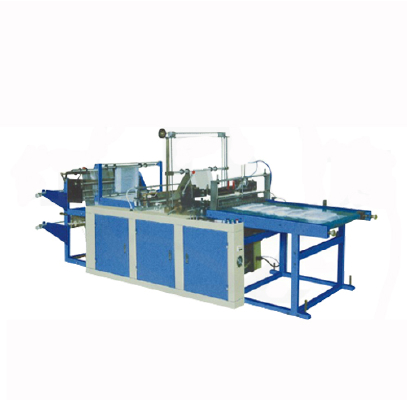

t is used for blowing the various plastic film of low density polyethylene(LDPE),high density polythylene(HDPE)natural colour bag and colour printing bag etc, Which are widely used for packing food,garments,industrial products and electric appliances etc.
Characteristics
1.Automatic bag-making counting and automatic alarm.
2.With accurate photoelectric eye tracking,the machine can automatically stop when bag making error exceeds 4 pieces.
3.The bag making length is controlled by the button switch.
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: GFQ-600/700/900
| Model | GFQ-600 | GFQ-700 | GFQ-900 |
| Max.Sealing and Cuttting Width | 550mm | 650mm | 850mm |
| Sealing and Cutting length | 1600mm | 1600mm | 1600mm |
| Sealing and Cutting Thickness | 0.006-0.10mm | 0.006-0.10mm | 0.01-0.10mm |
| Error in Length | ¡À1mm | ¡À1mm | ¡À1mm |
| Bag-making Speed | 40-120 pcs/min | 40-120 pcs/min | 40-120 pcs/min |
| Power of Main Motor | 1.1Kw | 1.5Kw | 1.5Kw |
| Heating Power | 1.2Kw | 1.5Kw | 2Kw |
| Total Power | 2.5Kw | 3.2Kw | 4.3Kw |
| Weight of Machine | 700kg | 820kg | 900kg |
| Overall Dimensions | 2650¡Á1200 ¡Á1550mm | 2650¡Á1400 ¡Á1550mm | 2800¡Á1500 ¡Á1550mm |
