- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: FQCH-HC-600(700)

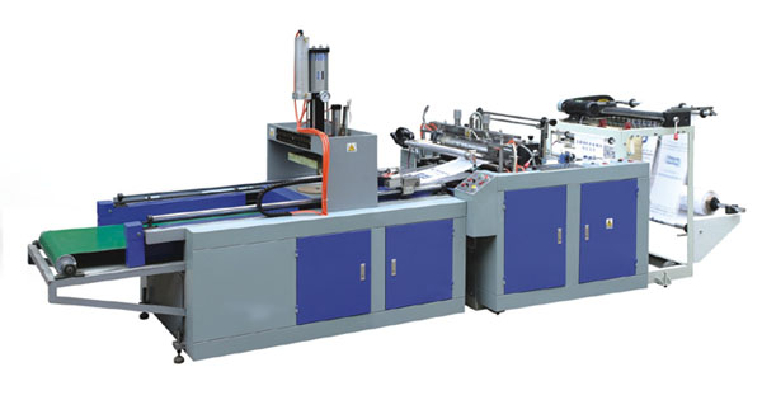

This hot-cutting vest bag making machine with automatic punching unit is suitable for hot-sealing and hot-cutting high denisty polyethylene(hdpe),low density polyethelene(ldpe) platic film.It adopts computer color code-tracking,hydraulic punch the "U" shape vest bag in one time.It is a special bag maker for producing vest bags.And with such features,such as easy operation and high finished products,so the production efficiency can be improved greatly.
- Place of Origin: ruian zhejiang china
- Brand Name: jiansheng
- Model Number: FQCH-HC-600(700)
Model type | FQCH-HC-600 | FQCH-HC-700 |
Sealing and cutting Width | 150-500mm | 150-600mm |
Sealing and cutting Length | 300-850mm | 300-850mm |
Sealing and cutting Thickness | 0.01-0.06mm | 0.01-0.06mm |
Bag-making Speed | 30-140pcs/min | 30-140pcs/min |
Machine Power | 5kw | 5kw |
Air Compress | 5kg/cm | 5kg/cm |
Machine Weight | 1100kg | 1150kg |
Overall Dimensions(L*W*H) | 4800*1180*1700mm | 4800*1280*1700mm |
