Mechanical Brief Description:

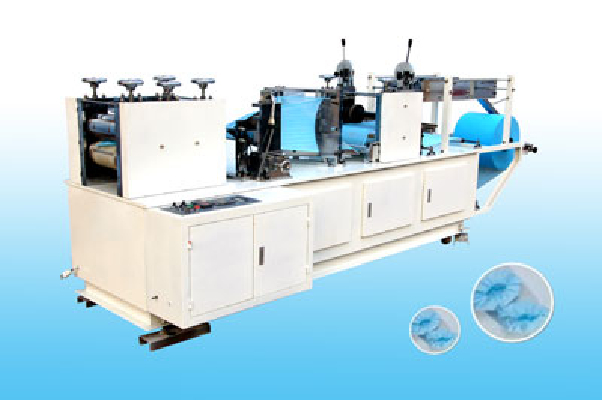

This Automatic Non-woven Shoe Cover Machine

 is an automatic and producing elastic plastic shoe cover which is a specialized machine. The output can reach 30-50 pcs/min. It is suitable for hospital、dustless industry and disposable goods. The whole machine make the raw materials into the finished product more easily and the process fully automated. It required one person to feed.

Machine Model: YT

Machine size: 3600*1030*1500mm (L*W*H)

Production capacity: 30-50pcs/min

Voltage: 1 phase 220v

Power: 3.5kw

Machine weight: 1000kg

Production dimension : 390*16cm(L*W) . special sizes according to the consumer’s requirements.

Features:

1 high output , small volume, do not take up too much space

2 program computer-controlled, equipped with photoelectricity test device, high reliable and excellent capability.

3 adjustable ultrasonic wave or debug hot electric welding

4 beautiful and fashionable appearance

5 Suitable for non-woven Material

6 The whole machine adopts steel plate structure

Mechanical main configurations:

1. Quartet Steel iron frame, material frame (surface silver-white color and elctrocoating)

2. Euipped with a set of wearing parts and a set of toolbox.
